Ukuchazwa Komkhiqizo

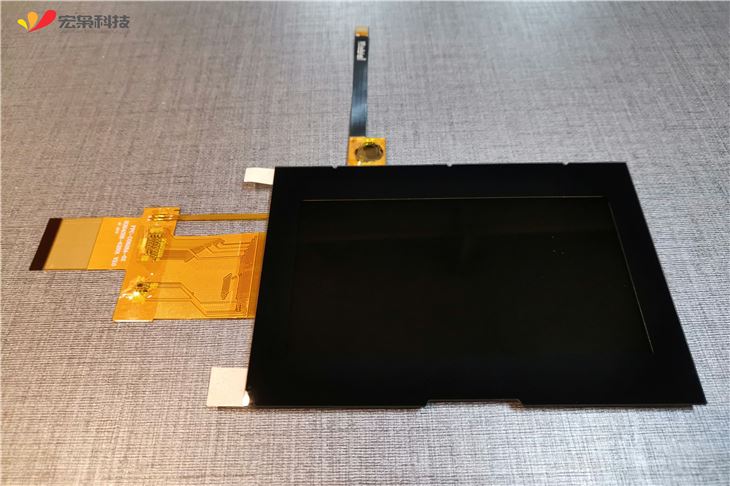

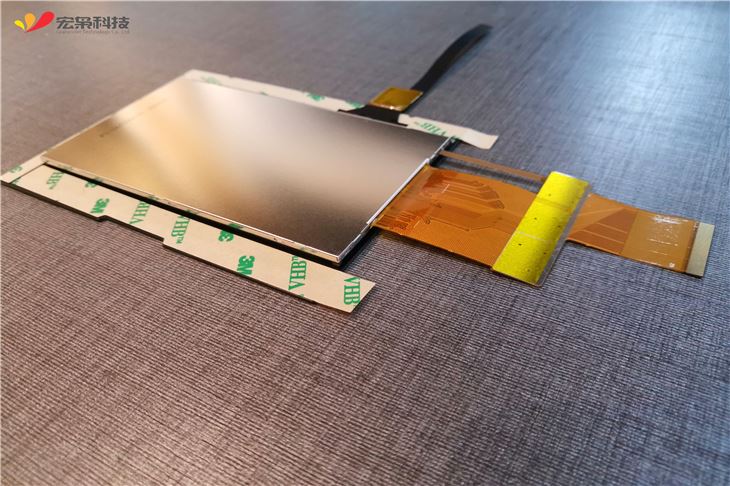

Lesi yisikrini sokuthinta esingu-4.3 i-Inch Capacitive nge-module ye-TFT Display, isibonisi se-RGB Isibonisi esibonisa ukulungiswa kwe-480x800, i-touch interface i2c, engaguqulwa ibe yi-USB ye-Drayivu mahhala uma udinga. Ngesixazululo se-ICICTIAL IC, lesi sikrini sokuthinta esingu-4 ikakhulukazi esetshenziswa kakhulu kwezokwelapha, ezimboni, ezokuphepha, izinto zasekhaya ezihlakaniphile nakwezinye izinkambu; Ukusekelwa kokujula ngokwezifiso, kufaka phakathi ukwakheka kanye nokwelashwa komhlaba - Ag ar af sine-TN kanye nezikrini zokubonisa ezibonakalayo ze-IPS okufanele zikhethe. Kokubili ukugqama okujwayelekile kanye nezinhlelo eziphakeme kakhulu ziyatholakala. Inqubo yokubopha umoya ne-optical-bonding ingakhethwa ngokuya ngezidingo zangempela zamaphrojekthi wamakhasimende.
Sicela uzizwe ukhululekile ukukuthumela noma yimuphi uphenyo kithi, uzothola impendulo ye-aus esikhathini esingaphansi kwamahora angama-24.
Ngemininingwane engaphezulu sicela ubone ngezansi kwetafula noma umphakeli oxhumana naye ngqo!
 | Imininingwane yomkhiqizo we-moduleInombolo yemodeli: Hx0431808 Usayizi: 4.3 inch Ukushisa okusebenzayo: -20℃~ 70 degree Ukushisa kwesitoreji: -0℃~ 80 degree Uhlaka Ubukhulu: 165,00 (W) x100.00 (h) x7.55 (h) mm Indawo yokubuka: 94.60 (W) x57.16 (h) mm Indawo esebenzayo: 93.60 (w) x56.16 (h) mm Izinhlelo zokusekela: IWindows / Android / Linux njll. Iwaranti: unyaka ongu-1 |
 | I-PCAP (I-Capacitive Ecatshangelwe)Ukuhamba okukhanyayo: Kukhulu kune- noma kulingana no-85% Ubulukhuni obungaphezulu: mkhulu kuno noma ulingana no-6h Uhlobo lokuxhumana: IIC / USB Isilawuli IC: FocletEC Isakhiwo: Ingilazi yengilazi + Amaphuzu wokuthinta: Amaphuzu ayi-1-10 I-Power Supply Voltage: 2.8V ~ 3.3V |
 | I-TFT LCD DisplayIsinqumo: 480x800 Uhlobo olubonakalayo: RGB I-Luminince: 295 CD / M² Ukubuka i-Angle: 80/80/80/80 |
Insizakalo yangokwezifiso
Uma ufuna interface ye-USB, singakwazi ukuhambisa iic ku-USB Bridgeboard Xhumana nathi
Umthandi
Q: Ungakunikeza insizakalo ye-OEM?
A: Yebo, singahlinzeka ngensizakalo ye-OEM ne-ODM, singenza ngezifiso imikhiqizo ngokuya ngemidwebo oyinikezayo.
Q: Kuzocatshangelwa kuziphi izimo lapho isixazululo se-module ye-module yesikrini esibonisa isibungu?
A: 1. Uma ikhasimende linezidingo eziphakeme zobuhle obuphelele bomkhiqizo, bangabheka ubudlelwane obubonayo ngoba wonke umphumela omnyama wemodyuli yonke muhle kakhulu ngemuva kokubopha okubonakalayo;
2. Uma umkhiqizo wekhasimende ngokwawo unezidingo eziphakeme ezinjengomthelela olwa nokushaqeka kanye nokumelana nomthelela endaweni yayo yokusebenza, isixazululo esibophayo se-Optical singabhekwa;
3. Uma umkhiqizo wekhasimende usetshenziswa ngaphandle futhi ube nezidingo ezithile ngomphumela obonakalayo welanga nokuqina kokushaqeka okushisayo nokubandayo kanye nesakhiwo esiphelele, uhlelo olubusayo oludingayo ludinga ukucatshangelwa;
